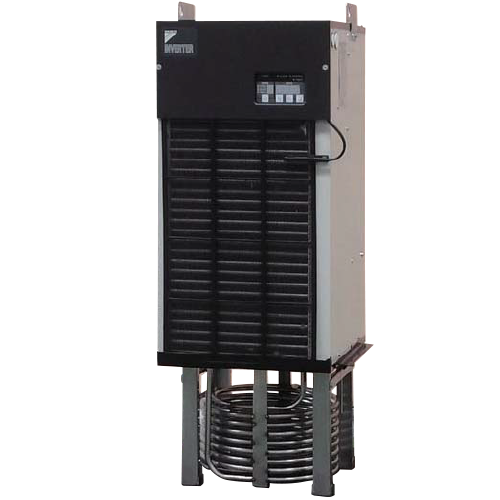

Máy làm mát dầu coolant Daikin AKJ909

Máy làm mát dầu coolant Daikin AKJ909 ( Model cũ AKZJ907, AKZJ908 )

Product Info

Further evolution of temperature control. Expansion of cooling capacity control range. ROHS compliant. High-energy saving performance. Low noise operation in the low-load range. Compact design. Easy monitoring of operating status.

Cross Reference
Kanto Seiki – KTV-22, V2200, KTV-22B-R-N-UL
Habor – HK-2RS
MAC – MAC-220CSC-SR, MAC-220CSC-SDX-SA
Please contact us for exact specifications when using cross-references.

Specifications

AKJ189, AKJ359, AKJ459

*1.

The cooling capacity indicates the value at the standard point (tank fluid temperature: 35°C, room temperature: 35°C, fluid used: ISO VG32). This unit has about ±5% of product tolerance.

*2.

Use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the machine. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.

*3.

There are the following three types of different voltage specifications.
AC220, 230 V : Option code −046 (without transformer)
AC380, 400, 415 V : Option code −047 (with built-in transformer)
AC440, 460, 480 V : Option code −048 (with built-in transformer)
The main circuit voltage is the transformer’s secondary side voltage of AC 200 V, 50/60 Hz. (−046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)

*4.

The optional thermistor for machine temperature synchronization is required. (Refer to Page 17 for details.)

*5.

The SDS (Safety Data Sheet) of refrigerant R410A is attached to the -C type.

*6.

Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)

*7.

The molded-case circuit breaker is not supplied with this product. Please prepare it yourself.

*8.

The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

■AKJ189

■AKJ359

■AKJ459

AKJ569, AKJ909, AKJ1509

*1.

The cooling capacity indicates the value at the standard point (tank fluid temperature: 35°C, room temperature: 35°C, fluid used: ISO VG32). This unit has about ±5% of product tolerance.

*2.

Use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the machine. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.

*3.

There are the following three types of different voltage specifications.
AC220, 230 V : Option code −046 (without transformer)
AC380, 400, 415 V : Option code −047 (with built-in transformer)
AC440, 460, 480 V : Option code −048 (with built-in transformer)
The main circuit voltage is the transformer’s secondary side voltage of AC 200 V, 50/60 Hz. (−046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)

*4.

The optional thermistor for machine temperature synchronization is required. (Refer to Page 17 for details.)

*5.

The SDS (Safety Data Sheet) of refrigerant R410A is attached to the -C type.

*6.

Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)

*7.

The molded-case circuit breaker is not supplied with this product. Please prepare it yourself.

*8.

The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

■AKJ569

■AKJ909

■AKJ1509
