Máy làm mát dầu thủy lực - Máy làm mát dầu trục chính Oil Cooling Units, Oil Matic DAIKIN AKZ909

Daikin AKZ909 - 9 Series Oil Refrigeration Unit

DAIKIN

CONTACT US FOR CURRENT AVAILABILITY

View all specifications

Daikin Industries are the market leaders in environmentally responsible, compact and low noise coolant refrigeration systems.

Each of the Daikin AKZ 9 series chiller units achieve high energy saving by utilising their invertor driven IPM motor technology.

High accuracy oil temperature control

Acclaimed ±0.1°C oil temperature control has been extended to cover an even wider range.

 Refrigerant gas leakage detection alarm function

An alarm signal is output when the refrigerant gas would be leaked (as cooling circuit failure).

Oil temperature warning function

A warning signal can be output when the oil temperature or air temperature strays outside arbitrarily setting range.

Auto tuning function

This function substantially cuts the time taken for adjustment during trial operation by automatically setting the gain when oil temperature control is not stable in the factory setting status or when optimization is required.

999-hour timer function (ON timer)

The operation start time can be set from 0 to 999 hours in one-hour units.

Preventive maintenance function

A warning signal is output to notify that maintenance is required when the air filter or condenser becomes clogged. If the thermistor fails (out of control), emergency operation is possible by selecting another operation mode. This function minimizes the factors of line stoppages.

The control panel has been revamped.

Data is now displayed in an easier-to-understand format with more digits space. The power consumption is also displayed.

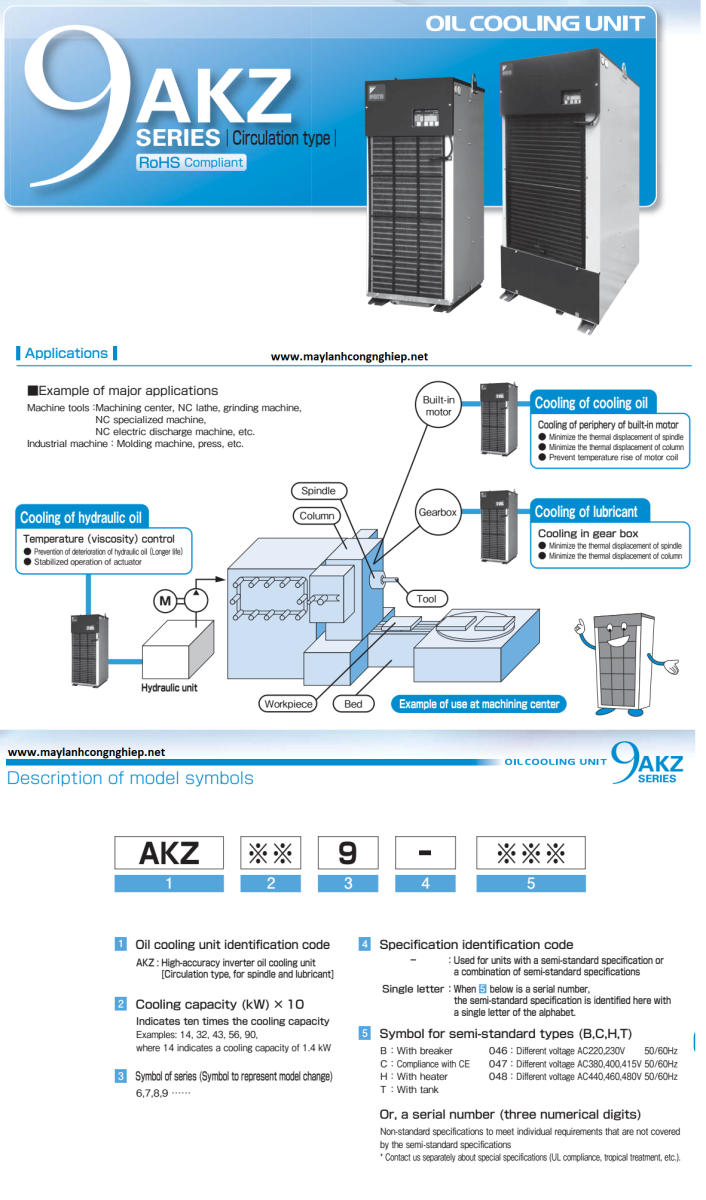

Special OEM versions

The Daikin AKZ refrigeration coolers are used extensively in many machine tool centers from the following manufacturers: Doosan, Makino, Citizen, Hyundai, Mazak and Traub Index.

The following special OEM versions are also available directly from Zeus Hydratech Ltd.

Looking to repair your chiller?
